# An Exploration of Cellular Automata as Dynamical Systems

Tim Swast onIn this set of experiments, I explore cellular automata, treated as dynamical systems. The state of the system is a pair of real numbers, with the cells of the cellular automata state corresponding to binary digits of the real numbers. With this mapping, I calculate the largest Lyapunov exponent for each of the 256 elementary cellular automata. This analysis hints that so-called complex, class 4 cellular automata may be distinguished from chaotic, class 3 cellular automata by the largest Lyapunov exponent of the chaotic orbits.

## What are cellular automata?

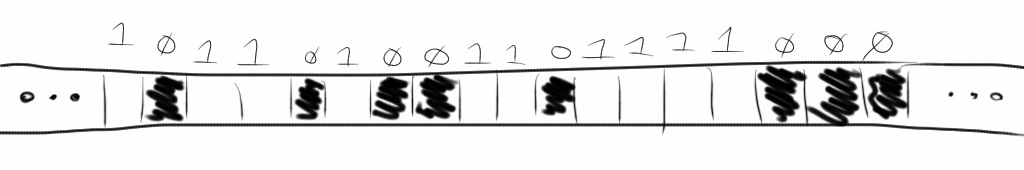

A cellular automata is a simple pattern for updating an infinite string of “cells” in all places at once. In this set of experiments, I consider “elementary” cellular automata which act on a string of white and black cells. I also call a white cell a one and a black cell a zero.

The system starts at some initial state and then this state is updated each step by the cellular automaton's rule. In deciding what color a cell will become, the elementary cellular automata in this set of experiments use the color of three cells: the cell's current color, the color of the immediate left neighbor, and of the right neighbor.

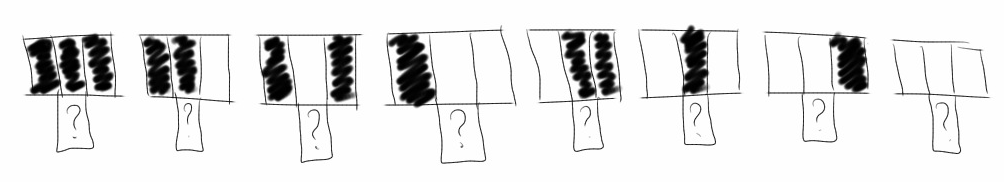

Since the elementary cellular automata consider three cells per update,
and a cell is one of two possible colors,
there are 2^{3} = 8 possible neighborhoods to consider.
To have a well defined rule, the result for each of these neighborhoods must
be defined. Will it become white or black, one or zero?

Because the result for each of these 8 possible neigborhoods can be one of two colors,
there are 2^{8} = 256 possible “rules.”
In this set of experiments, I calculate 1,000+ steps for each of the 256 rules.

## How do we name the cellular automata?

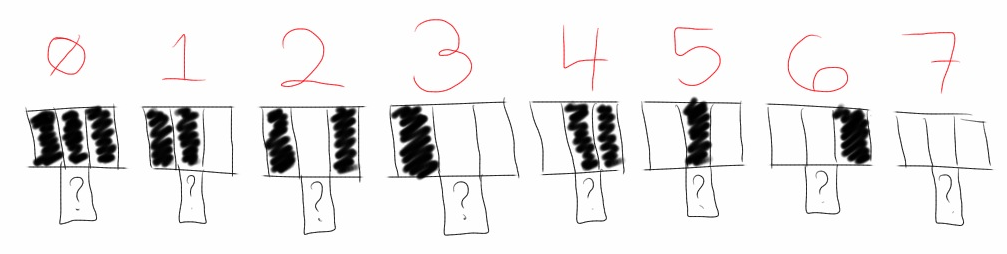

These 256 rules have a natural naming scheme. There is a natural ordering for the 8 neigborhoods that define a rule. Consider each neighborhood a three-bit binary number, ranging from 0 to 7.

Note that for each neighborhood, a well defined rule will output a 0 or a 1. Ordering the output for the 8 different neighborhoods generates an eight-bit binary number, ranging from 0 to 255 (Wolfram 53). For example, rule 1 would generate a 1 for the neighborhood 000, but it generates 0 for all other neighborhoods.

Since my computer has only finite memory, I cannot simulate a cellular automaton on an infinite number of bits. Instead, I use a finite state space. This means, I need to decide what to do for the boundary conditions. Since it seems to simulate an infinite space the best, I choose to wrap the state space around. The left-most cell is an immediate neighbor to the right-most cell.

## Cellular automata as dynamical systems.

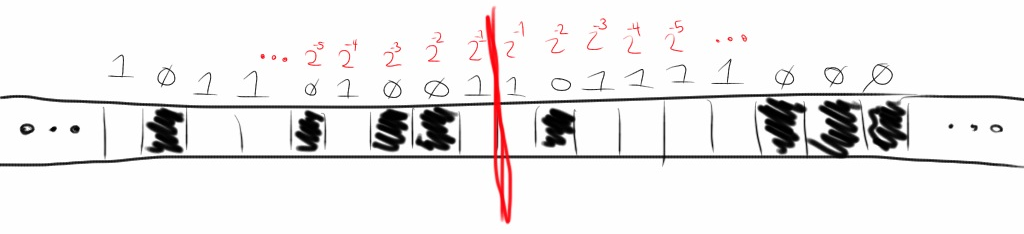

To apply the methods of analysis from Chaos and Dynamical Systems, I map the state space of the cellular automata to a two-dimensional real map on [0, 1]. I am choosing to ignore the fact that some real numbers have multiple binary representations (e.g. 1/2 = .1000... or .0111...). The reason the map is two-dimensional rather than one dimensional is this: imagine an infinite string of ones and zeros running in both directions. Since a the binary representation of a real number extends infinitely in only one direction (that of the fractional part), the most natural thing to do is to represent this infinite string by two real numbers.

Other representations are certainly possible. To represent a cellular automaton state
as a single real number,
one *could* pick an arbitrary location to represent the 1/2-place
and then spiral outward.
This feels unnatural, since neighboring digits in the cellular automata state space
are not immediate neighbors in the real number's representation.

With this mapping from cellular automaton state to a pair of real numbers, (x, y),
a cellular automaton computation generates a list of 2D points.
This infinite, ordered list is called an *orbit* in a dynamical system.

There is a way of quanifying if an orbit is chaotic or not. Lyapunov exponents
say how quickly orbits very close to each other spread apart.
If the Lyapunov exponent is >0, it means nearby orbits spread apart exponentially.
The orbit is then called *chaotic* (Alligood, Definition 5.2, p.196).
To numerically
find the largest Lyapunov exponent of the orbit, I use Wolf's algorithm
(Pilant Lecture 12A ;
Sprott).

## Results

For each of the 256 elementary cellular automata rules, I calculated an orbit of length five hundred, two thousand, and five thousand. Rather than show the results of these 768 calculations, I will show examples of 15 of the more interesting cases.

In the 500-length case, I used as state space of 1,000 bits. I then chose an
initial condition
randomly with states of equal probability for 41 bits about its center

```
octave:1> s = zeros(1000, 1);
octave:2> s(480:520) = rand(41, 1) > 0.5;
```

In terms of a dynamical system, this simulates picking a two rational numbers,
each of which can be represented with a finite number of base-2 bits.
I do a similar thing in the 5,000-length orbits. With a state space of
10,000 bits, I choose 101 bits at random with equal probability in the center.

```
EDU>> s = zeros(10000, 1);
EDU>> s(4950:5050) = rand(101,1) > 0.5;
```

In the 2,000-length case I do something different. With a state space of 2000 bits I choose all 2000 bits randomly with equal probability. This is much closer to simulating an irrational value, especially since I chose to use circular boundary conditions. This will make a difference, as some cellular automata seem to have chaotic orbits only in this case, with an approximately irrational number.

To reduce the filesizes transferred, I only show a short subset in the middle of each cellular automaton's “history” diagram.

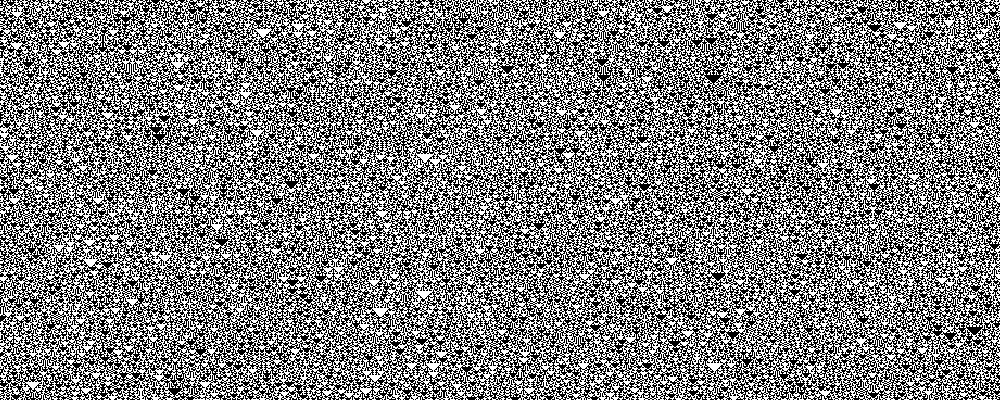

### Rule 150

Rule 150, 10010110_{2}, is interesting because in the 2,000-length orbit
case, it has a high Lyapunov exponent. In the orbit length
cases, rather than chaotic orbits, it showed very regular behavior. I believe this
is due to the difference in initial condition choice. With rational initial conditions,
it seems to show aysmptotically periodic orbits, but with irrational initial conditions
it shows chaotic orbits.

The calculated Lyapunov exponent was 1.45. Compare the history and orbit of the 2,000-length case.

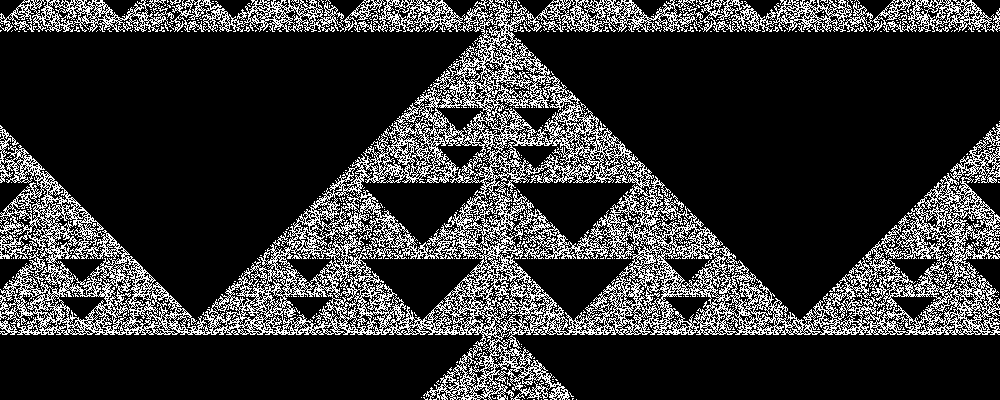

Compare to the 5,000-length case.

Once interpreted as two real numbers, it looks like the 5,000-length orbit is asymptotically periodic.

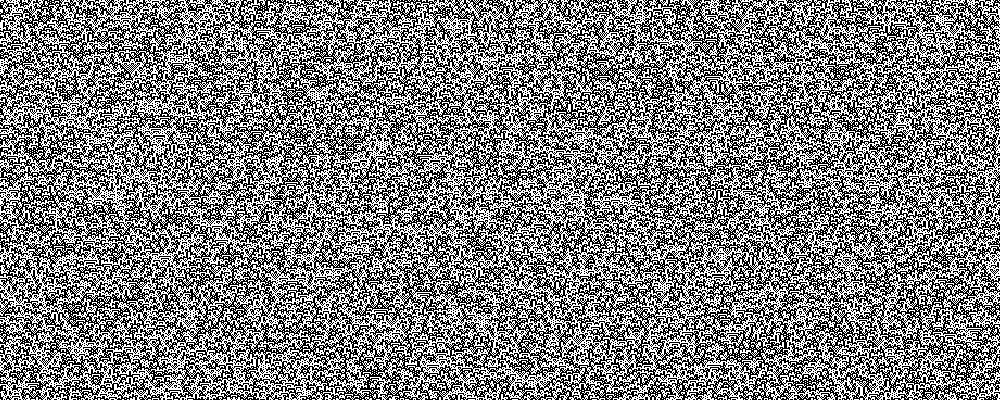

### Rule 105

Like Rule 150, Rule 105 only showed chaotic orbits in the 2,000-length orbit case. Likely, this is for the same reason, the 2,000-length orbit more closely simulated an irrational initial condition.

The calculated Lyapunov exponent was 1.44

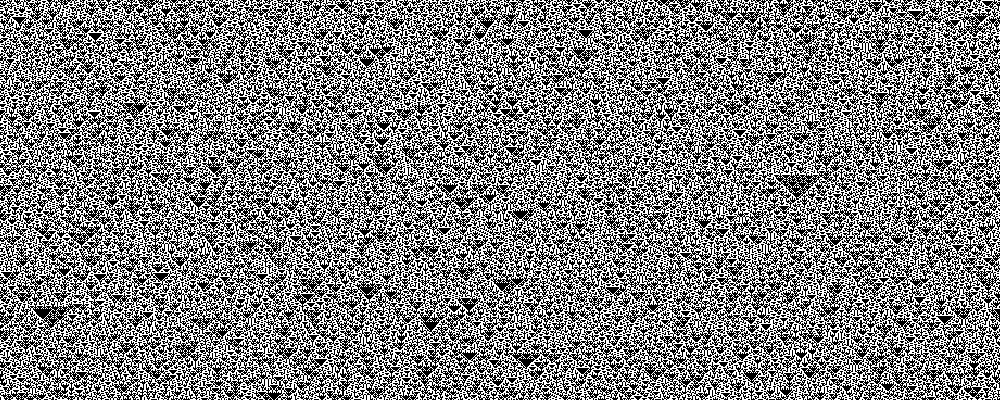

### Rule 90, 165

Rule 90 and Rule 165 are equivalent (Atlas of Simple Programs). Replace all black cells with white cells and vice versa to switch from rule to the other.

Like the previous two rules, these rules showed chaotic behavior only in the 2,000-length case, with a simulated irrational number. For both rules, I calculated a largest Lyapunov exponent as 1.39.

### Rule 22, 151

Rule 22 and Rule 151 are also equivalent by swapping black and white (zero and one).
*Unlike* the previous sets of rules, I calculated chaotic orbits in all three
experiments.

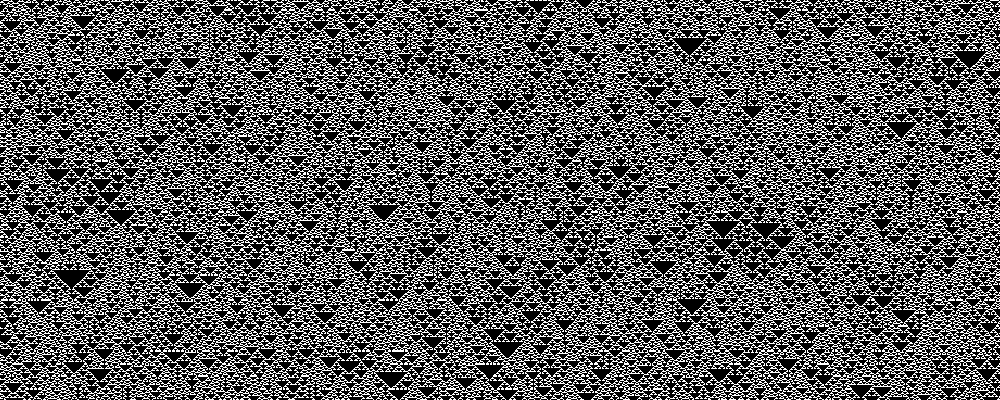

In the 2,000-length Rule 22 orbit, the largest Lyapunov exponent is 1.33, but in the 2,000-length Rule 151 orbit, the Lyapunov exponent is 1.57. Although these rules are equivalent, the fact that white and black are swapped effectively means the initial conditions were different. This means that the Lyapunov exponent must be very variable for the chaotic attractor (or there are more than one attractor).

This is output from rule 22.

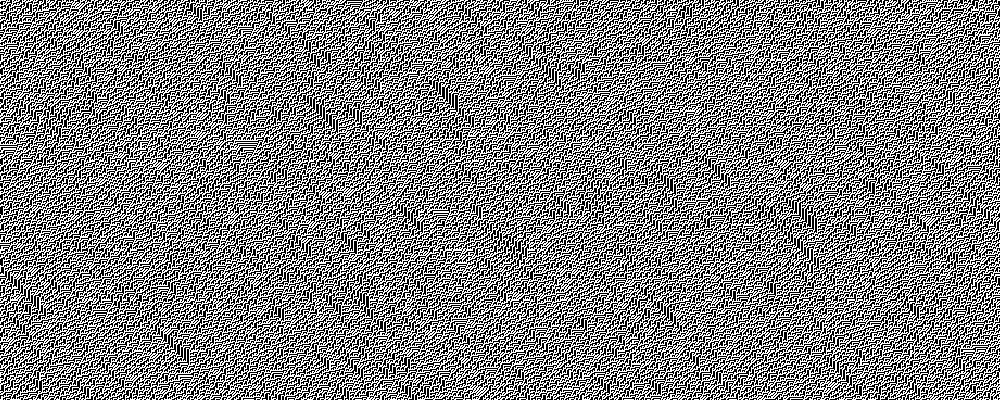

### Rule 45, 75, 89, 101

Rules 45, 75, 89, and 101 are equivalent. In the 2,000-length case I calculated Lyapunov exponents of 1.22, 1.23, 1.19, and 1.38, respectively.

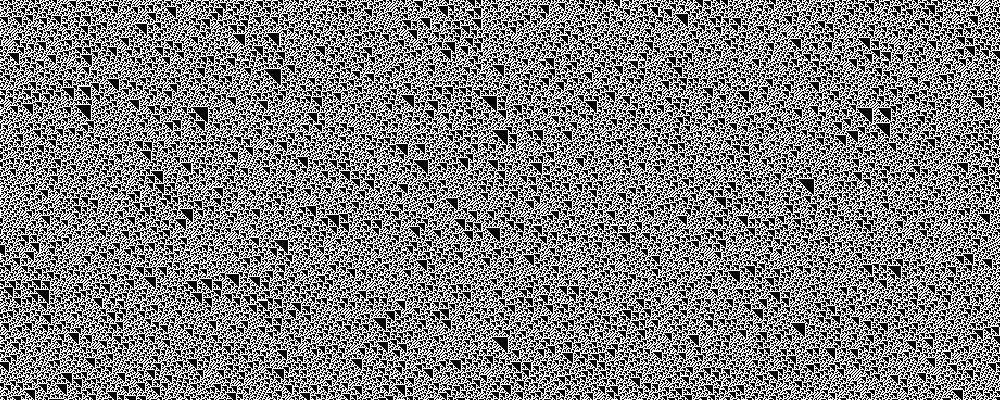

### Rule 60, 102, 153, 195

Rules 60, 102, 153, and 195 are equivalent. In the 2,000-length case I calculated Lyapunov exponents of 1.17, 1.09, 1.09, and 1.17, respectively.

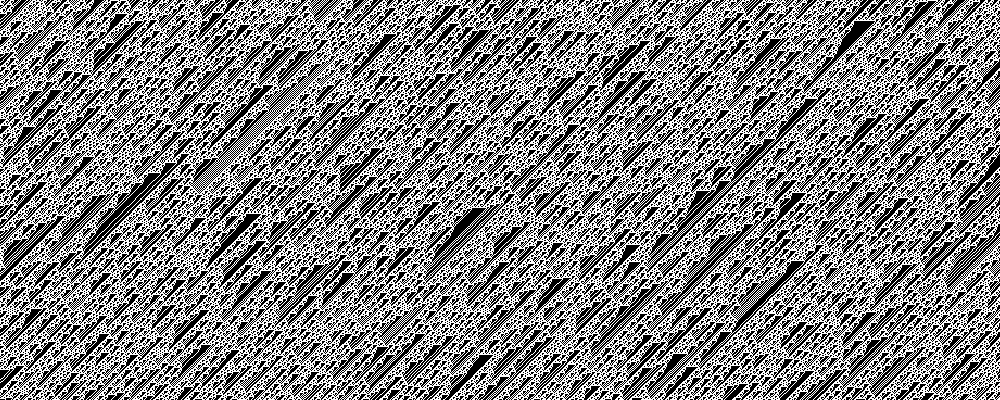

### Rule 106, 120, 169, 225

Rules 106, 120, 169, and 225 are equivalent. In the 2,000-length case I calculated Lyapunov exponents of 0.90, 1.03, 1.04, and 1.01, respectively.

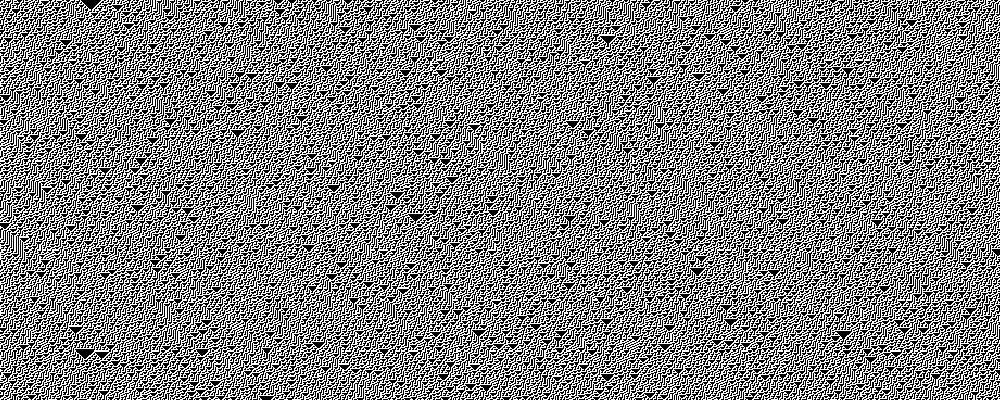

### Rule 30, 86, 135, 149

Rules 30, 86, 135, and 149 are equivalent. In the 2,000-length case I calculated Lyapunov exponents of 1.05, 1.07, 0.92, and 0.88, respectively.

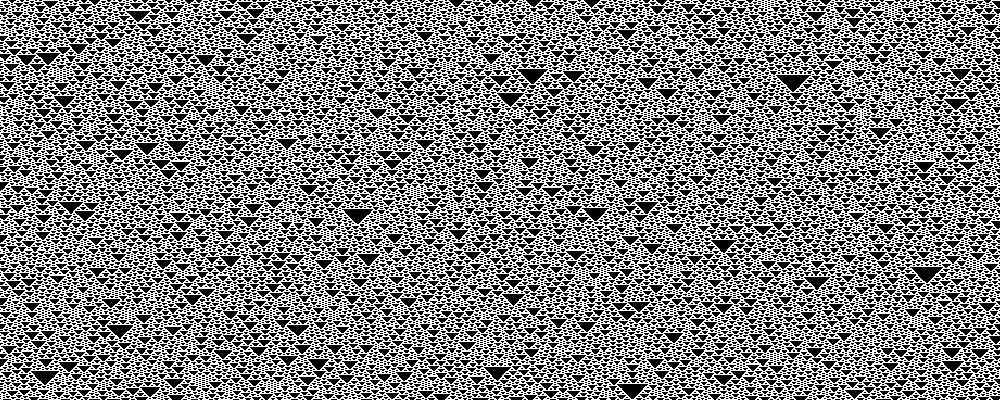

### Rule 126, 129

Rules 126 and 129 are equivalent. In the 2,000-length case I calculated Lyapunov exponents of 0.85 for both.

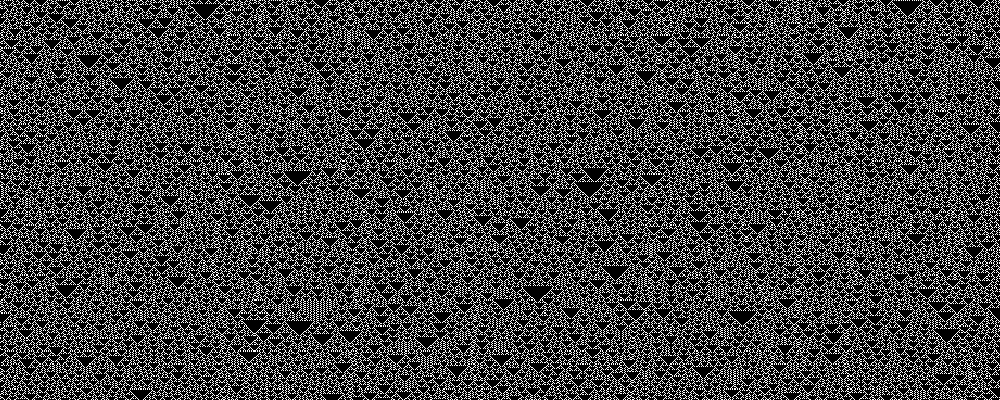

### Rule 146, 182

Rules 146 and 182 are equivalent. In the 2,000-length case I calculated Lyapunov exponents of 0.74 and 0.73, respectively.

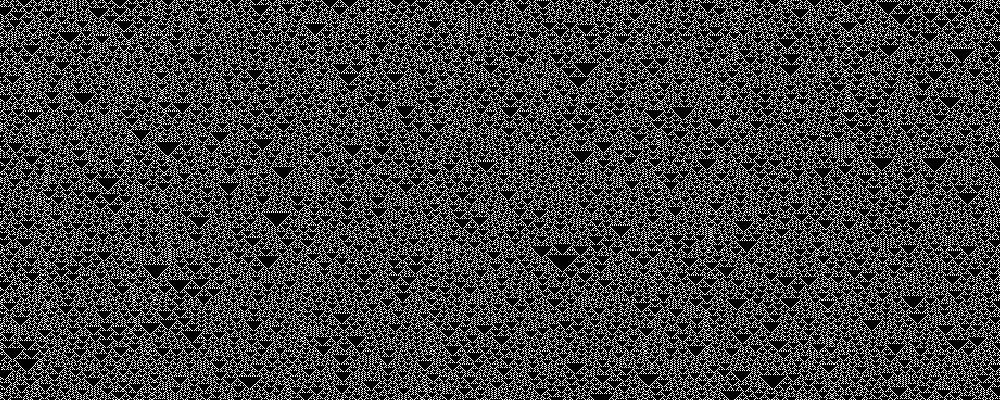

### Rule 18, 183

Rules 18 and 183 are equivalent. In the 2,000-length case I calculated Lyapunov exponents of 0.73 and 0.70, respectively.

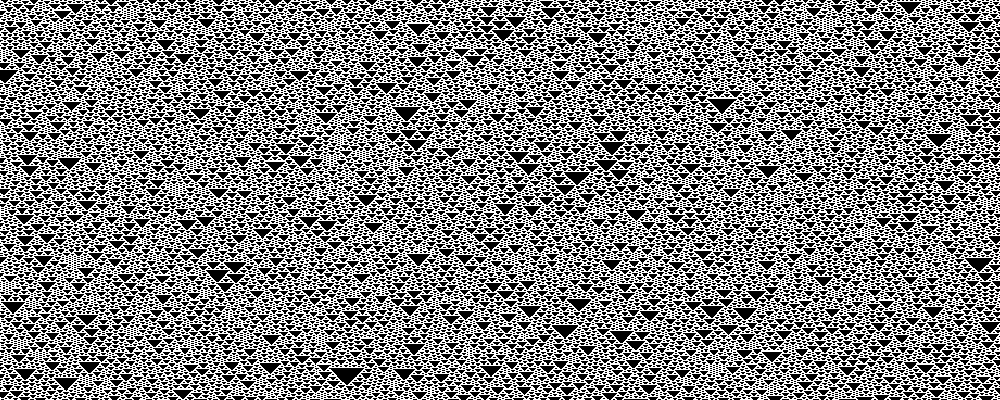

### Rule 122, 161

Rules 122 and 161 are equivalent. In the 2,000-length case I calculated Lyapunov exponents of 0.70 and 0.95, respectively.

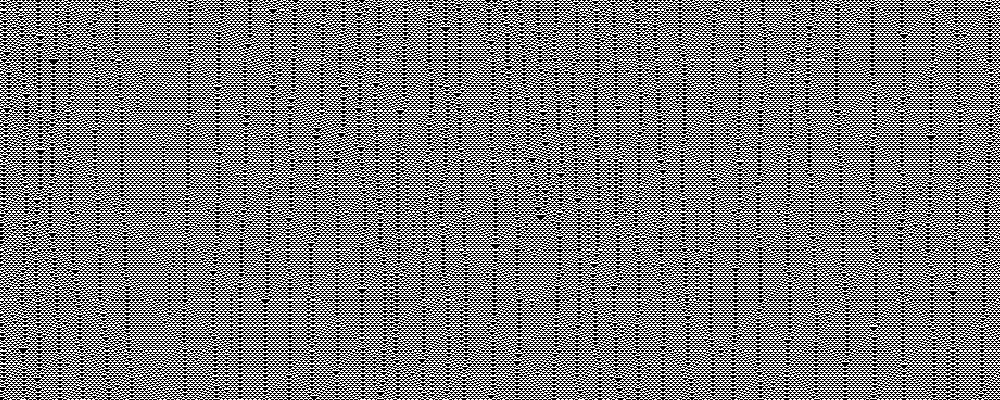

### Rule 54, 147

Rules 54 and 147 are equivalent. In the 2,000-length case I calculated Lyapunov exponents of 0.49 and 0.47, respectively.

### Rule 110, 124, 137, 193

Rules 110, 124, 137 and 193 are equivalent. In the 2,000-length case I calculated Lyapunov exponents of 0.13, 0.12, 0.02, and 0.27, respectively.

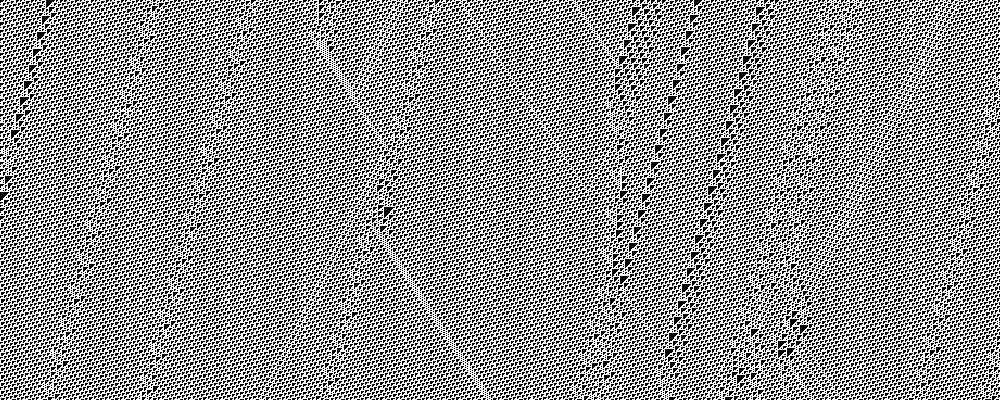

While quantitatively the least chaotic, rule 110 shows interesting “particle” interactions. It is for this reason that it is classified as a “complex,” class IV rule. (Kunkle 11)

## References

- Alligood, Kathleen T., Tim Sauer, and James A. Yorke.
*Chaos: An Introduction to Dynamical Systems.*New York: Springer, 1997. Print. -
Boguta, Kovas, et al.
*Wolfram Atlas of Simple Programs.*N.p., n.d. Web. 24 Mar. 2013. <http://atlas.wolfram.com/aboutatlas.html>. - Pilant, Michael S.
*Math 614 : Chaos and Dynamical Systems : Course Homepage*, n.d. Web. <http://www.math.tamu.edu/~mpilant/math614/>. - Kunkle, Daniel R. "Automatic Classication of One-Dimensional Cellular Automata." Rochester Institute of Technology Computer Science Department, 17 July 2003. Web. <http://www.ccs.neu.edu/home/kunkle/papers/kunkle-msthesis.pdf>.
- Sprott, J. C.
*Numerical Calculation of Largest Lyapunov Exponent.*Department of Physics, University of Wisconsin, 31 Aug. 2004. Web. < http://sprott.physics.wisc.edu/chaos/lyapexp.htm>. - Wolfram, Stephen. A New Kind of Science. Champaign, IL: Wolfram Media, 2002.

## Appendix A (Matlab Codes)

allcellularautomata.m is the “main loop” function. It takes an initial state, a number of generations to calculate, and an array of all rules to use in the calculations. When run in “headless” mode, it creates PDF files of the history, orbits, and Lyapunov exponent graphs, as well as text files with more detailed information.

function [history, fhistory] = allcellularautomata(initialstate, generations, initialrule, isheadless)

N = length(initialstate);

state = zeros(N, 1);

nextstate = zeros(N, 1);

history = zeros(generations, N);

fhistory = zeros(generations, 2);

for rulenumber = initialrule

if isheadless == 0

f = figure();

else

f = figure('visible','off');

end

state(:) = initialstate(:);

history(1,:) = state;

for g=2:generations

for i=1:N

% wrap around

lefti = i-1;

if lefti < 1

lefti = N;

end

% wrap around

righti = i+1;

if righti > N

righti = 1;

end

nextstate(i) = n3rule([state(lefti) state(i) state(righti)], rulenumber);

end

state(:) = nextstate(:);

history(g,:) = state(:);

end

% Display a conventional cellular automata map,

% showing state as pixels in an image. This is like the examples here:

% http://mathworld.wolfram.com/CellularAutomaton.html

% and perhaps more appropriately,

% with examples of rules for neighborhood 3, here:

% http://mathworld.wolfram.com/ElementaryCellularAutomaton.html

imshow(history);

%colormap(hot(256))

title(strcat('History plot for Elementary Rule ', int2str(rulenumber)));

% To interpret the finite array of states in a way that would make sense

% for an infinite string of bits, we interpret the state as two floating

% point nubmers.

%

% More accurately, we treat the state as two strings of binary digits

% (bits), representing two real numbers in [0, 1]. They start in the middle

% of the array, and one has bits going right and the other has bits going

% left.

%

% The alternative, treating it as only one floating point number suffers

% from strange effects because of boundary conditions. That is, the

% least-significant bits of the floating point representation affect the

% most-significant bits. This is not an effect that would happen in the

% infinite case.

fhistory(:) = horzcat( ...

sum( ...

history(:,ceil(N/2):N) .* (2 .^ (-1 .* (1+repmat(ceil(N/2):N,generations,1)-ceil(N/2)))), ...

2), ...

sum( ...

history(:,ceil(N/2)-1:-1:1) .* (2 .^ (-1 .* repmat(1:ceil(N/2)-1,generations,1))), ...

2));

if isheadless == 0

disp('Initial state:')

fhistory(1,:)

disp('Ending state:')

fhistory(generations,:)

disp('press any key to continue');

% wait for user input

pause;

else

print(f, '-r300', '-dpdf', strcat('rule', int2str(rulenumber), '-history.pdf'));

end

plot(fhistory(:,1),fhistory(:,2));

title(strcat('Orbit plot for Elementary Rule ', int2str(rulenumber)));

if isheadless ~= 0

print(f, '-r300', '-dpdf', strcat('rule', int2str(rulenumber), '-orbit.pdf'));

end

datapath = strcat('rule', int2str(rulenumber), '.dat');

save(datapath, '-ascii', 'fhistory');

multilyapunov(datapath, rulenumber);

end % done with rules loop

end

n3rule.m is the function which does the caluclations for each rule. It works by looking at the bits for each neighborhood in the rule number and multiplexing the output based on the state of the length-3 array/neighborhood given as input.

function out = n3rule(M, n)

% Given a rule set, n, as a unsigned 8-bit integer (uint8),

% does the state M produce a live or dead cell?

% M is a size-3 array representing a small neighborhood.

% Convert the neighborhood into a bitmask representing the rule

% number.

bitindex = M .* [4, 2, 1];

bitindex = sum(bitindex);

bitmask = uint8(2^bitindex);

out = bitand(bitmask, n) ~= 0;

multilyapunov.m calculates the largest Lyapunov exponent for a 2D orbit.

function multilyapunov(filename, isheadless)

% Calculates the largest Lyapunov exponent of a dataset.

% Uses the method described here:

% http://sprott.physics.wisc.edu/chaos/lyapexp.htm

% We use norm(), rather than abs(). This amounts to taking the

% Euclidean distance between vectors.

% load in data file

data = load(filename);

% calculate number of data points

[N,M] = size(data);

N2 = floor(N/2);

N4 = floor(N/4);

% find mid point of orbit sequence

k=N2;

% create space for exponents

exponent = zeros(N4,1);

dprev = zeros(M,1)';

myeps = eps('single');

% look at 1/4 of the points

for (j=1:N4)

% set distance initially

d = norm(data(k+1,:)-data(k,:));

index = k+1;

for (i=2:N-1)

% see if there is a closer point

% We must be careful in this step to ensure that

% we renormalize along the line between the two previous

% points. That way we are getting the largest Lyapunov exponent.

dcurr = data(i,:)-data(k,:);

if (i ~= k) && (norm(dcurr))<d && ismultiple(dprev, dcurr) == 1

d = norm(dcurr);

index = i;

end

end

% write log of quotient as difference of logs to get better accuracy!

if norm(data(k,:)-data(index,:)) > myeps && norm(data(k+1,:)-data(index+1,:)) > myeps

exponent(j) = log( norm(data(k+1,:)-data(index+1,:)))-log(norm(data(k,:)-data(index,:)));

end

% repeat with the next point

k = k+1;

end

% now plot the lyapunov exponents

t = 1:N4;

lyapunov = exponent(1:N4);

exp_avg = 0.0;

% find the average value for lyapunov exponent

for (i=1:N4)

exp_avg = exp_avg + exponent(i);

end

% plot the exponents, the average, and the baseline

if isheadless == 0

f = figure();

else

f = figure('visible','off');

end

exp_avg = exp_avg/N4;

plot(t,lyapunov,t,0,t,exp_avg);

if isheadless ~= 0

pathprefix = strcat('rule', int2str(isheadless), '-lyapunov');

print(f, '-r300', '-dpdf', strcat(pathprefix, '.pdf'));

fid = fopen(strcat(pathprefix, '.txt'), 'w');

else

fid = 0;

end

fprintf(fid, 'average value for lyapunov exponent is: %f\n', exp_avg);

fclose(fid);

ismultiple.m is a helper function for calculating the largest Lyapunov exponent for a 2D orbit. It is used to determine points which are okay to use for renormalization.

function [output] = ismultiple(scaledv, rootv)

% Returns 1 if scaledv = lambda * rootv for some scalar lambda.

% Otherwise 0

% Define some value of 'close'.

% Here we use the machine epsilon for the single precision value of 1.

% Even though the default is double precision, this will make it more

% likely for us to find better Lyapunov exponents in the multi-dimensional

% case.

myeps = eps('single');

output = 0;

% Two vectors are linearly dependent when the determinant of this matrix

% is zero. See:

% http://www.math.oregonstate.edu/home/programs/undergrad/CalculusQuestStudyGuides/vcalc/lindep/lindep.html

% http://en.wikipedia.org/wiki/Linear_independence#Alternative_method_using_determinants

D = horzcat(scaledv', rootv');

if det(D) <= myeps

output = 1;

end

## Appendix B (Lyapunov exponents)

Rule | Notes | 2,000-length Lyapunov exp. |
500-length | 5,000-length |
---|---|---|---|---|

73 | W+ | 0 | 0 | 0 |

109 | W+ | 0 | 0 | 0 |

137 | ^ | 0.021314 | 0.164427 | 0 |

124 | ^ | 0.119714 | 0.058037 | 0 |

110 | ^ | 0.125197 | 0.005764 | 0 |

193 | ^ | 0.273403 | 0.191303 | 0 |

147 | ^ | 0.469898 | 0.592045 | 0 |

54 | ^ | 0.492321 | 0.014497 | 0 |

122 | + | 0.698529 | 0.145074 | 0 |

161 | + | 0.949707 | 0 | 0 |

183 | + | 0.699048 | 0.089066 | 0 |

18 | + | 0.729279 | 0.456123 | 0 |

182 | + | 0.731118 | 0.078797 | 0 |

146 | + | 0.740505 | 0.093224 | 0 |

126 | + | 0.846913 | 0.080218 | 0 |

129 | + | 0.846914 | 0.080263 | 0 |

149 | W+ | 0.884794 | 0.080263 | 0.973602 |

135 | W+ | 0.917641 | 0.843196 | 0.973499 |

30 | W+ | 1.045584 | 0.769440 | 0.986373 |

86 | W+ | 1.065465 | 0.821074 | 0.928197 |

106 | + | 0.897803 | 0 | 0 |

225 | + | 1.007624 | 0 | 0 |

120 | + | 1.033221 | 0 | 0 |

169 | + | 1.037291 | 0 | 0 |

102 | + | 1.088862 | ||

153 | + | 1.088862 | 0 | 0 |

60 | + | 1.170586 | 0 | 0 |

195 | + | 1.170586 | 0 | 0 |

89 | W+ | 1.192999 | 1.285273 | 1.299358 |

45 | W+ | 1.217507 | 1.249671 | 1.271245 |

75 | W+ | 1.230172 | 1.088283 | 1.324628 |

101 | W+ | 1.378533 | 1.141068 | 1.395981 |

22 | + | 1.327705 | 1.385613 | 1.458550 |

151 | + | 1.571052 | 1.384629 | 1.449308 |

90 | + | 1.390813 | 0 | 0 |

165 | + | 1.390813 | 0 | 0 |

105 | + | 1.443450 | 0 | 0 |

150 | + | 1.446001 | 0 | 0 |

[+] Labeled Chaotic in Kunkle's classification thesis. [^] Labeled Complex in Kunkle's classification thesis. [W] Complexity from simple initial conditions (Wolfram p.58).

## Appendix C (Initial States)

For the curious, I am providing the initial states I used for these experiments. Most pictures shown here were generated by running 2,000 steps with this initial state. I found this approximated an irrational initial state, whereas the initial states I used for the 500-length orbits and the 5,000-length orbits are more like rational initial states.
